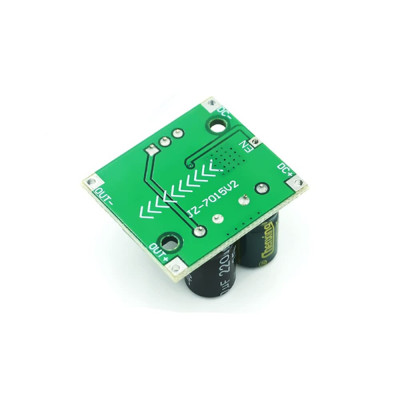

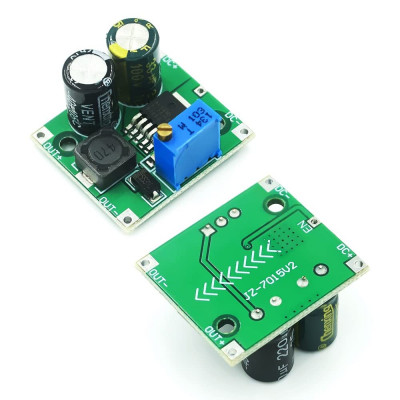

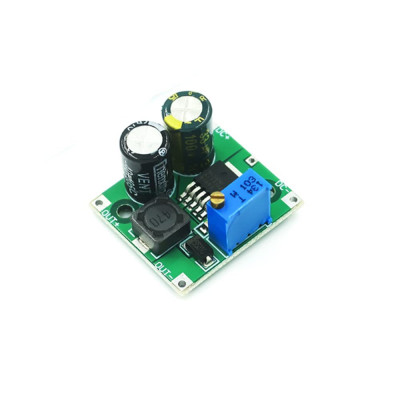

XL7015 DC-DC Dc converter Step-down module 5V-80V Wide voltage input 7005A upgraded version

Description

• XL7015 DC - DC buck type module is A highly efficient, high-pressure step-down
• DC - DC converter
• provides the highest 0.8 A output current capability, low ripple, excellent linear regulation and load regulation, up to A maximum of 80 v input voltage, more than 2596 modules, etc.
• Chip built-in various protection mechanisms. Can be applied to electric vehicle controller, etc.

Features

• Wide input voltage range: 5 v to 80 v
• The output voltage is adjustable from 5 v to 20 v
• The minimum voltage drop 1 v. (Small limit)
• Biggest switch current; 0.8 A
• The Recommend output power is less than 7 w
• Built-in thermal shutdown protection, output short circuit protection, over current protection, Good linear with load regulation
