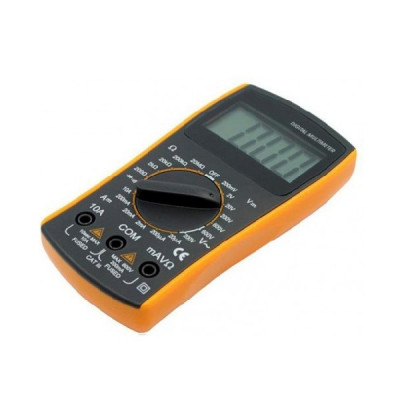

VARTECH DIGITAL MULTIMETER V830A

SPECIFICATIONS

DC Voltage

 Range

200 mV, 2 V, 20 V, 200 V, 600 V

 Basic Accuracy

± (0.5 % reading + 4 digits)

Input impedance

1 M Ω

AC Voltage

 Range

200 V, 600 V

 Basic Accuracy

± (1.2 % rdg + 10 digits)

 Freq. Response

40 ~ 200 Hz

DC Current

 Range

20 µA, 200 µA, 2 mA, 20 mA, 200 mA, 10 A

 Basic Accuracy

± (1.5 % rdg + 3 digits)

 Resistance

 Range

200 Ω, 2 K Ω, 20 K Ω, 200 K Ω, 20 M Ω

 Basic Accuracy

± (0.8% rdg + 5 digits)

Diode Test

Available

Continuity Beeper

Available

Power Source

9 V (6F22)

 Accessories Supplied

Test Leads, User Manual & Battery (Installed / Kept Aside).

Holster Optional.

 Dimension & Weight

145 x 85 x 30 mm   &  Approx. 170 gms. (Including Battery)
