Type-c usb transfer pin dip female base B adapter typec feed and discharge pin

Description

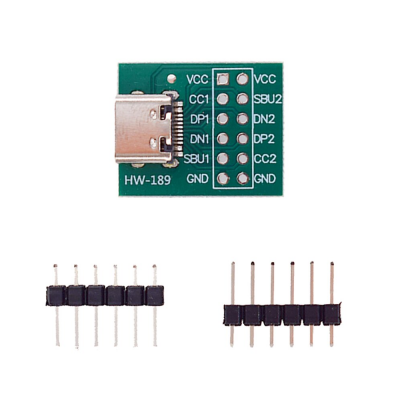

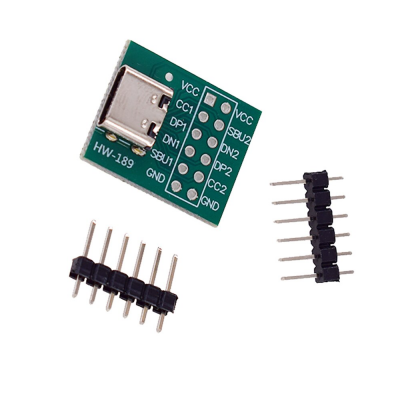

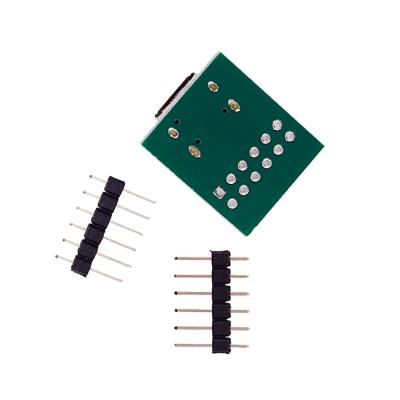

The product is a type-C mother base adapter board, which leads out all pin pins of type-C base to realize the function of connecting with row pin / row mother.

Features

·         Pin-Pin function

·         VCC Positive pole of power supply

·         SBU1 Sideband usage

·         SBU2 Sideband usage

·         DP1 USB 2.0 differential signal, position 1, positive

·         DP2 USB 2.0 differential signal, position 2, positive

·         CC1 Configure channels for identification and control

·         CC2 Configure channels for identification and control

·         DN1 USB 2.0 differential signal, position 1, negative

·         DN2 USB 2.0 differential signal, position 2, negative

·         GND Negative pole of power supply
