TP5100 2 Cells 8.4V, Single Cell 4.2 V 2Amp Lithium Battery Charger, 18650 Charging PCB 5-18V DC Power Supply

TP5100 2 Cells 8.4V, Single Cell 4.2 V 2Amp Lithium Battery Charger, 18650 Charging PCB 5-18V DC Power Supply
  • Stock: In Stock
  • Brand: xcluma
  • Model: BE-002117
  • Weight: 3.00g
  • SKU: BE-002117
  • MPN: BE-002117
Rs68.00
(GST +18%Extra)

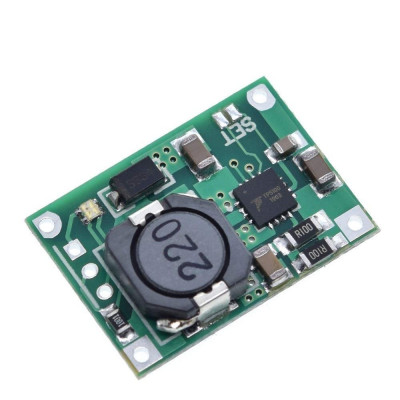

TP5100 2 Cells 8.4V, Single Cell 4.2 V 2Amp Lithium Battery Charger, 18650 Charging PCB 5-18V DC Power Supply
TP5100 is a double switch buck 8.4V, single cell 4. 2V lithium battery charge management chip. Its ultra-compact QFN16 package and simple external circuit, making TP5100 ideal for portable equipment so large current charging management applications. Meanwhile, TP5100 built-in input overcurrent, under voltage protection, over temperature protection, short circuit protection, battery temperature monitoring, reverse battery protection.
TP5100 have 5V-18V wide input voltage, dual battery trickle charge into pre-charge, constant current, constant voltage three phase, pre-charge current trickle charge current through an external resistor adjustment, the maximum charge current up to 2A. TP5100 with a frequency of 400kHz switching mode makes it possible to use a smaller outer Suo device and the large current charging still maintain a smaller amount of heat.
TP51OO built-in power PMOSFET, anti-intrusion circuit, so no anti-intrusion protection and other external Schottky diode.
 Features:
 - Double 8.4v / 4.2v lithium rechargeable single
- Programmable charge current. 0. 1A-2A
- Programmable steady precharge current 10% -100%.
- Wide operating voltage, maximum reach I8V
- Red and green LED charge status indicator
- Chip temperature protection, overcurrent protection, undervoltage protection
- Battery temperature protection, reverse battery shutdown, short circuit protection
- Switching frequency 400Khz, usable inductance 20uH and more
- PWR_ON Power battery for switching control
 Maximum Ratings:
 - Static input supply voltage (VlN): 20V
- BAI: -8.4V-20V
- BAT Short-Circuit Duration: Continuous
- Operating environment Temperature range: -40 ℃ -85 ℃
- Storage temperature range: -65 ℃ - 125 ℃
  Application:
 - Portable equipment, various chargers
- Smartphone, PDA, mobile cellular telephone
- MP4, MP5 players, tablets
- HM
- Power Tools
- Walkie-talkie
  Default shipping settings: 4.2V 2A. The board has with LED, and LED's external reserve position.

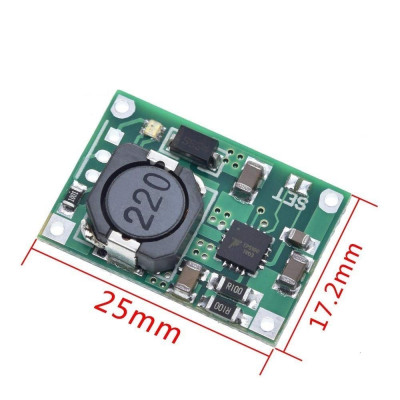

  Size: 25 * 17 * 5mm ultra-small size
  Input voltage: 5-18V DC power supply

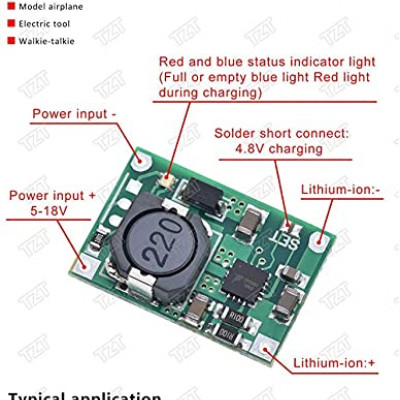

  Charge status: full and unloaded blue lights, charging red.

  Package Included: 1PC*TP5100 2 cells / single Lithium Lion Battery Charger Module 2A 18650 Charging PCB
