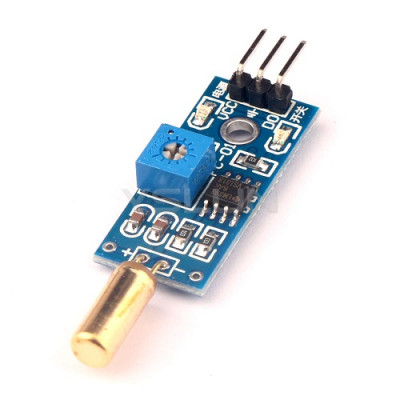

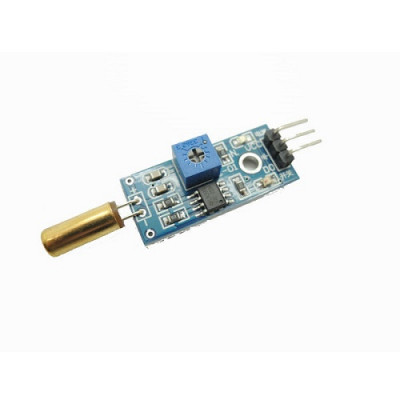

Tilt Sensor Module Tilt Switch Module For Robot Smart Car

Tilt Sensor Module Tilt Switch Module For Robot Smart Car
  • Stock: In Stock
  • Brand: xcluma
  • Model: BE-000229
  • Weight: 4.00g
  • MPN: BE-000229
Rs35.00
(GST +18%Extra)

ONE MODULE DESCRIPTION:

  • The angle sensor can sense the change object
  • Operating Voltage3.3V-5V
  • Output Type Digital switching output (0And1)
  • With fixed bolt hole for easy installation
  • Small platesPCBSize:3cm * 1.6cm



TWO MODULE INTERFACE SPECIFICATION (3Wire )

  • VCC External3.3V-5VVoltage ( directly with5vSCM and3.3vMicrocontroller is connected )
  • GND ExternalGND
  • DO Small board digital output interface (0And1)

Note:AOIn the mouth this is invalid , do not do any processing.



THREE INSTRUCTIONS:

  • Tilt sensorMECOriginal tilt switchSW-460DHigh sensitivity, generally used to detect the object angle changes .
  • Module without inclination or tilt angle of less than the threshold value,DOPort output high, when the tilt angle sensor exceeds the threshold , the moduleD0Output low.
  • Small board digital outputD0Can be directly connected with the microcontroller through the microcontroller to detect high and low , thereby detecting an object angle changes.
  • Small board digital outputDOOur relay module can directly drive , which can be composed of a tilt switch.

FOUR MODULE APPLICATIONS:

  • Tire pressure monitoring system(TPMS), Bicycle lights , digital photo frame rotation, screen rotate, flip video camera , anti-theft system
  • Five test instructions
  • Use shop51Boards and tilt sensor module test

WIRING:

ModuleVCCPick Development BoardVCC

ModuleGNDPick Development BoardGND

ConnectedVCCAndGND, Module power indicator lights

The module level light up the desktop, the module slowly rotating in one direction , the switch indicator lights , and then rotate the module in the opposite direction , back to the original state , the switch lights off. This phenomenon is explained , changing the angle sensor can trigger module , so that the switch indicator lights.



Another item which comes with a51Procedures used to detect tilt sensor module digital interfaceD0High and low

Are described as follows :

Wiring:

ModuleVCCPick Development BoardVCC

ModuleGNDPick Development BoardGND

ModuleD0Pick Development BoardP0.1

SCM:STC89C52

Send data to serial baud rate :9600

Phenomenon: change the angle of the trigger module , serial constantly sending01While the switch indicator light ;

No angle change does not trigger module , serial data is not sent , lights out.
