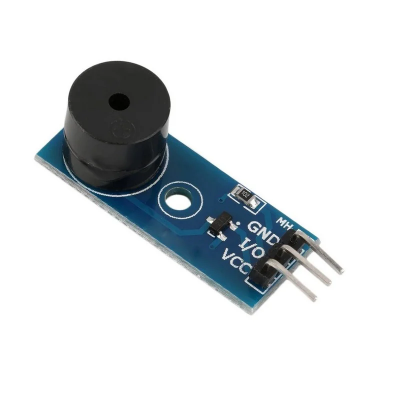

Passive Buzzer Module Low Level-Triggered the Sound Module Buzzer Control Board Alarm

Passive Buzzer Module Low Level-Triggered the Sound Module Buzzer Control Board Alarm

The characteristics of the passive buzzer is:
1 passive internal without shock source, so if use dc signal can't make it.Must use 2 k ~ 5 k square wave to drive it
For more than 2 sound frequency control, can make "m hair sola west" effect.
3 in some particular case, can reuse and LED a control

The characteristics of the active buzzer is:
1 Active buzzer inside with shock source, so as long as the electricity will call
2 Program control convenient, single chip microcomputer a high and low level can make the sound, and the passive buzzer is can't do.
Each weight is about 6 g

Module description:

1.module driven by 9012 triode

2. working voltage of 3.3 V to 5 V
3. sets of fixed bolt hole, convenient installation
4. small board PCB size: 3.3 cm X 1.3 cm

Module interface specification (3 wire system)
1. VCC external 3.3 V to 5 V voltage (which can be directly connected to 5 V microcontroller and 3.3 V microcontroller)
2. GND external GND
3. I/O external microcontroller IO port
