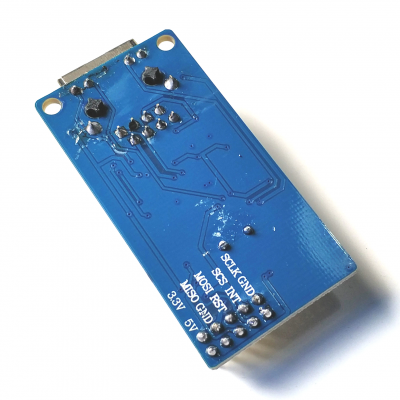

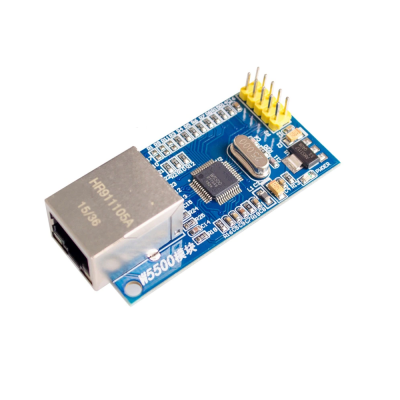

Network Module W5500 Full Hardware TCP/IP Protocol Stack Ethernet

Description

·         Supports hard-wired TCP/IP protocols: TCP, UDP, ICMP, IPv4, ARP, IGMP
Supports 8 independent sockets at the same time

·         Supports power-off mode

·         Lans can be woken up through UDP

·         Supports high-speed serial peripheral interface (SPI mode 0, 3)

·         Internal 32Kbytes TX/RX buffer memory

·         10BaseT/100BaseTX Ethernet PHY embedded

·         Support for auto negotiation (full duplex and half duplex, based on 10 and 100)

·         IP segment is not supported

·         3V operation with 5V I/O signal tolerance

·         LED output (full/half duplex, link, Speed, active)

·         48-pin LQFP Lead-free package (7x7mm, 0.5mm pitch)


SPECIFICATIONS

Chip type: W5500
3V and 5V are supported
Hard-wired TCP/IP protocol: TCP, UDP, ICMP, IPv4, ARP, IGMP, and PPPoE
10BaseT/100BaseTX Ethernet PHY embedded
Supports automatic response (full duplex/half duplex mode)
Supports 8 independent sockets at the same time
The internal 32Kbytes memory is for the Tx/Rx buffer
Power off mode: Supported
Wake up on network: supported
SPI interface (SPI MODE 0, 3), easy to connect with MCU
