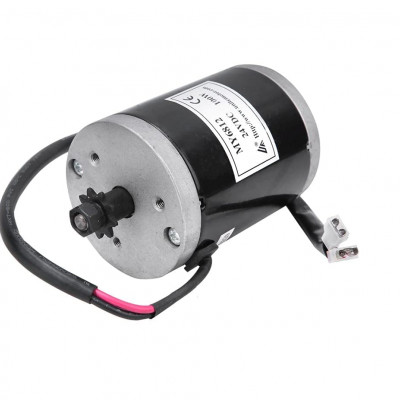

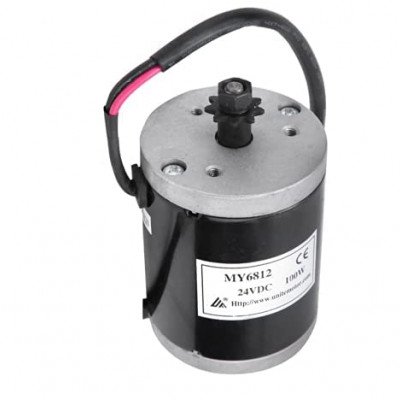

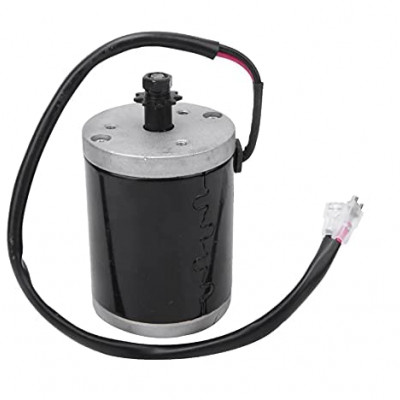

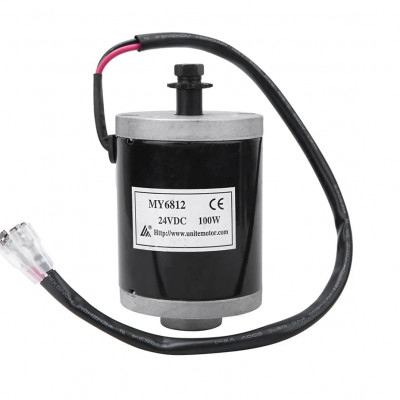

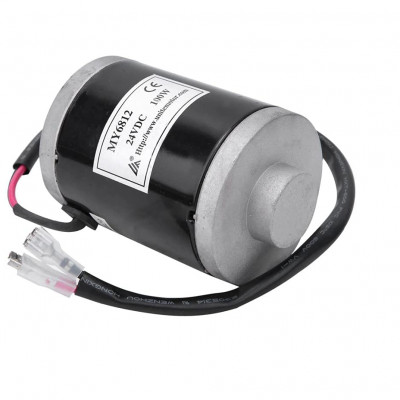

MY6812 12V 100W High Speed Small Brush Motor with Belt Pulley for E Bike e-bike

Features:

·        This product is a small brush motor, made of premium aluminium material.

·        With metal belt pulley, strong, durable for long time use.

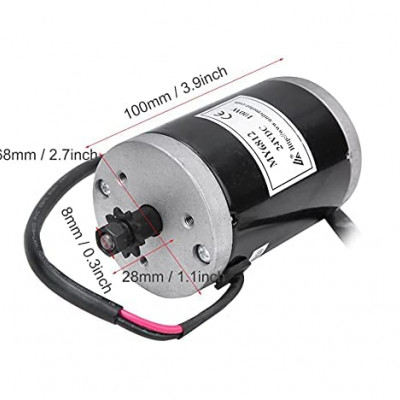

·        The motor length of 100mm is 68mm in diameter, the shaft length is 28mm, the shaft diameter is 8mm, the distance between the 2 fixed holes of the motor is 36mm, and the sprocket wheel is the 9 teeth sprocket wheel of the 25H model.

·        The shaft diameter: 8mm (single milling slot 1mm).

·        Suitable for electric scooter, electric bicycle, etc.

Specification

Item Type: Brushed Motor

Material: aluminium

o   Rated power: 100W (kW)

o   Rated voltage: 12 (V)

o   Main application: scooter, electric vehicle

o   Rated voltage range of 3C: below 36V DC

o   Rated current: <8, 5A

o   Rated speed (RPM): 2500±5%

o   Maximum speed (RPM): 3500±5%

o   No-load current: <0.9A

o   Rated torque: 0.56 nm

o   Transmission: belt pulley, metal

o   Shaft diameter: 8mm (single milling slot 1mm)

o   Efficiency: > 68%

o   Motor length: 100mm/3.9inch

o   Motor diameter: 68mm/2.7inch

o   Shaft length: 28mm/1.1inch

o   Shaft diameter: 8mm/0.3inch

o   Motor fixed holes distance: 36mm/1.4inch

o   Sprocket: 25H 9 teeth sprocket

o   2800 RPM 6.0 amperes rated current 0.35 Nm.
