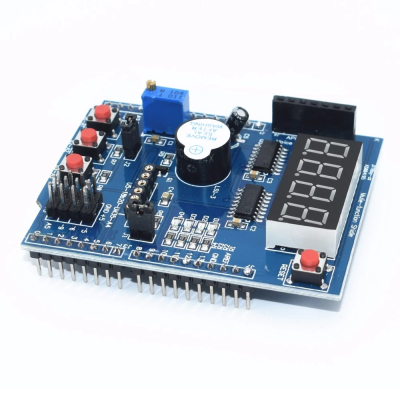

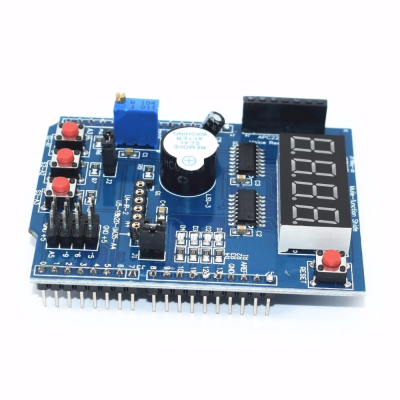

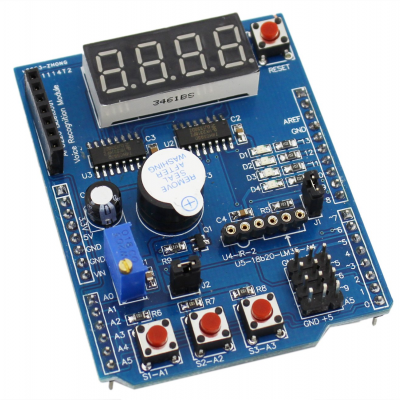

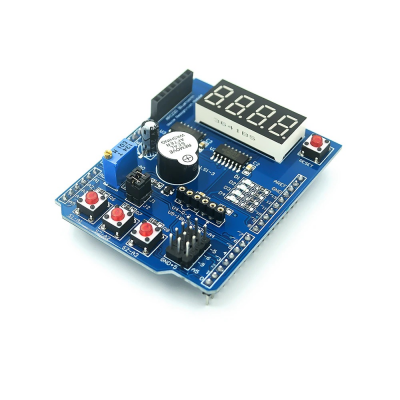

Multifunctional expansion learning board for UNO r3 LENARDO mega 2560 Shield

Description

·        Multifunctional shield for UNO. It incorporates many sensors and components to help build and test prototypes without confusing wires, and because the components are soldered, it ensures good contact with them.

·        All you have to do is plug the adapter into the microcontroller and you can use it, no additional soldering is required.

·        This is an open-source code base and Simple I/O platform, and with the use of a similar java, C language development environment.

·        So you can quickly use the language with Flash or Processing and other software to make interactive works.

·        Can be used to complete the development of electronic components such as Switch or Sensors or other controllers, LED, stepper motor or other output device

Features

·        4 digit 7-segment LED display module driven by two serial 74HC595’s

·        4 x surface mount LEDs in a parallel configuration

·        10K adjustable precision potentiometer

·        3 x independent push buttons

·        Piezo buzzer

·        DS18B20 temperature sensor interface

·        LM35 temperature sensor interface

·        Infrared receiver interface

·        Serial interface header for convenient connection to serial modules such as Bluetooth, wireless interface, voice module, a voice recognition module etc
