Mt7681 Xwifi Internet Of Things Wifi Development Board

DESCRIPTION:

After modules such as VoCore, AsiaRF AWM002, and ESP8622, here’s come xWifi. This module is based on Mediatek MT7681 SoC which includes a TCP/IP stack like Espressif ESP8622 or TI CC3300, so it won’t run OpenWRT like VoCore or AsiaRF modules. The module only consumes about 350mW during transfer, it will be open source hardware, and the xWifi module plus a dock with a 10A relay, a humidity and temperature sensor, and a LED.

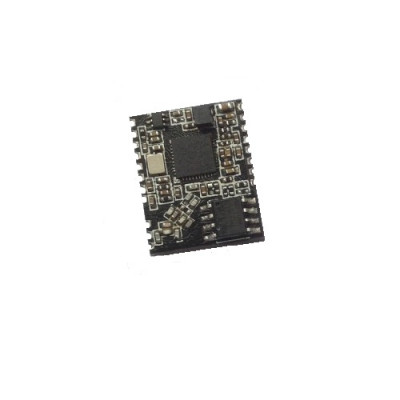

xWifi module only specifications:

• SoC – Mediatek MT7681 802.11 b/g/n SoC with 32-bit RISC CPU. Support for Client/softAP mode. Package size 5×5 mm
• Storage – 512KB SPI Flash (for firmware)
• I/Os via headers:
  • UART and SPI interfaces.
  • 5x GPIOs
  • PWM
• Power – 3.3V, GND
• Power Consumption – ~70mA  @ 5V (during RX active)
• Dimensions – 14 x 17 mm

The module can be used for smart home appliances, smart plug and door locks, smart lighting, metering, remote control, network consumer devices, and more.

There’s also a dock available with xWifi modules:

• Relay – Songle SRD03VDC-SL-C – 3V for control pins. 230V/10A support.
• Sensors – Humidity & Temperature sensor
• Header – 2x 8 pin header for xWifi module
• Misc – 3-color LED
• Power – 5V via micro USB port
• Dimensions – N/A, estimated ~ 4 x 3 cm
