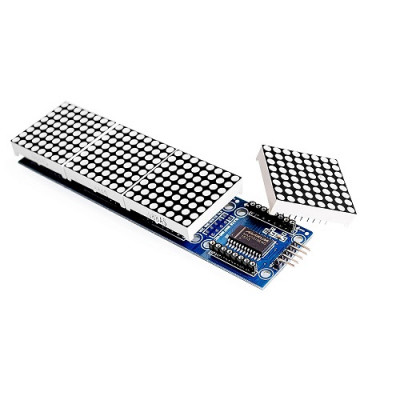

MAX7219 Microcontroller 4 in 1 Display with 5P Line Dot Matrix Module

MAX7219 Microcontroller 4 in 1 Display with 5P Line Dot Matrix Module
  • Stock: In Stock
  • Brand: xcluma
  • Model: BE-000900
  • Weight: 55.00g
  • MPN: BE-000900
Rs269.00
(GST +18%Extra)

DESCRIPTION:

  • A single module can drive a 8x8 dot matrix common cathode
  • Operating Voltage: 5V
  • A single module can drive a 8x8 dot matrix common cathode
  • Operating Voltage: 5V
  • Dimensions: 12.8X12.8X1.3cm/
  • Fixing screws with 64 holes with a diameter 3mm
  • Module with input and output interfaces, support for cascading multiple modules
  • Quality:1Set
    • The left side of the module to the input port, the right to an output port
    • When the control of a single module, simply input port connected to CPU
    • When a plurality of cascaded modules, input and output termination CPU, an input terminal of the second output end of the first module a module, the first two modules of the input terminal of the three termination modules, and so on...
    • 51 microcontrollers, for example:
      VCC 5V
      GND GND
      DIN P2.2
      CS P2.1
      CLK P2.0
