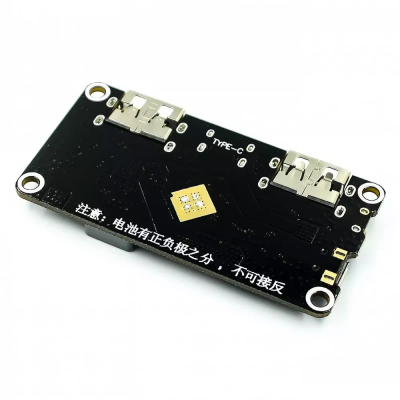

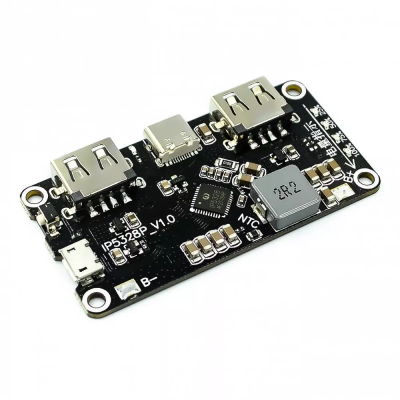

IP5328P charging two-way 3.7V to 5V 9V 12V boost fast charging circuit board

IP5328P charging two-way 3.7V to 5V 9V 12V boost fast charging circuit board
  • Stock: Out Of Stock
  • Brand: xcluma
  • Model: BE-002940
  • SKU: BE-002940
  • MPN: BE-002940
Rs407.00
(GST +18%Extra)

Description

·         Use the set core IP5328P mobile power solutions, four layers of heavy gold plate, optimize the layout, support A variety of quick

·         charge agreement, two-way 18 w quick charge, can support A total of four charging interface: two USB - A output interface, A USB -C interface, A Micro USB interface, four interface support quick charge, including two USB port A support QC3.0, FCP, AFC, MTK,
SFCP quick charge output

·         The power can reach 18 w; Support apple, Samsung, BC1.2 protocol. USB-C port supports USB PD two-way fast charge, and compatible with FCP, AFC, SFCP fast charge input and QC3.0, FCP, AFC, MTK, SFCP fast charge output.

·         MicroUSB supports FCP, AFC, SFCP fast charging input.

Product module parameters:

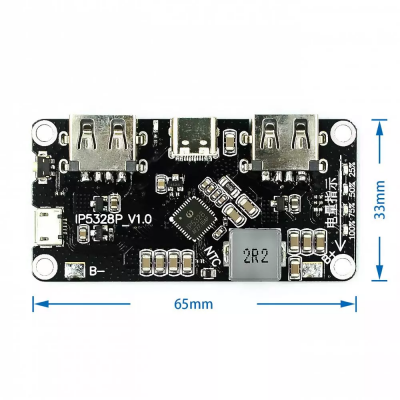

·         ultra-thin four-corner hole diameter 3mm

·         Output interface: USBA+USBA+ type-c supports fast charging output (please refer to the specification for fast charging protocol)

·         Input interface: MICRO + type-c supports fast charging input (see the specification for fast charging protocol)

·         Battery type: 3.7v battery (collection or 18650 lithium battery) single parallel, the capacity is not limited, the larger the capacity, the longer the charge and discharge time, for safety, please add protection plate for the battery, the main board has positive and negative poles, the battery cannot be connected to the reverse, the anti-burning motherboard consequences!!!

·         Quick charge indicator: input/output high voltage quick charge indicator

·         Conversion efficiency: 95% efficiency (power efficiency varies with different voltages) see specification for details

·         Press the button: the duration of the button is longer than 60ms, but less than 2s, which means the short press action.

·         The short press will turn on the power display light and boost output. The long press 10s can reset the whole system, and the button
