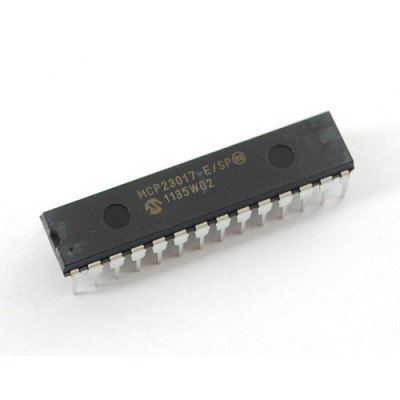

MCP23S17 I2C 16 input/output port expander 28 pin

MCP23S17 I2C 16 input/output port expander 28 pin
Out Of Stock
Thanks for Your Trust and Support!!!
Thanks for Your Trust and Support!!!
MCP23S17 I2C 16 input/output port expander 28 pin
  • Stock: Out Of Stock
  • Brand: xcluma
  • Model: BE-000507
  • MPN: BE-000507
0 reviews - Write a review
Rs179.00
(GST +18%Extra)
Add to Cart
Direct Checkout Ask Question
Add to Wish List Compare this Product
free shipping Order Above 499--**
Dispatch within 24 Hours*
7 Days Replacement Only

Features:

  • 16-bit input/output port expander with interrupt output
  • Cascadable for up to 8 devices on one bus
  • 25mA sink/source capability per I/O
  • Supports 100kHz, 400kHz and 1.7MHz I2C™Compatible compatible modes
  • DIP Package
  • 16 bit remote bidirectional I/O port
  • High speed I2C interface
  • Configurable interrupt output pins
  • Polarity inversion register to configure the polarity of the input port data
  • External reset input
  • Low standby current
