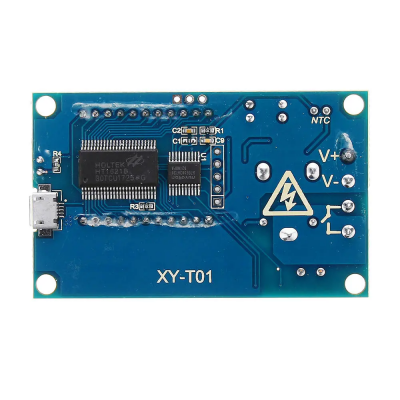

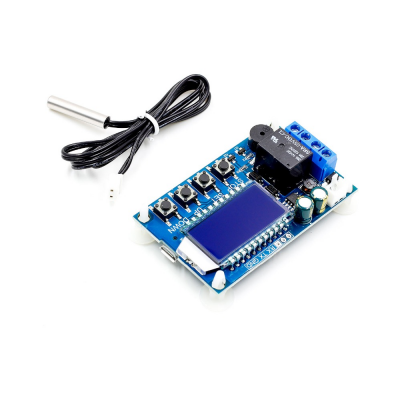

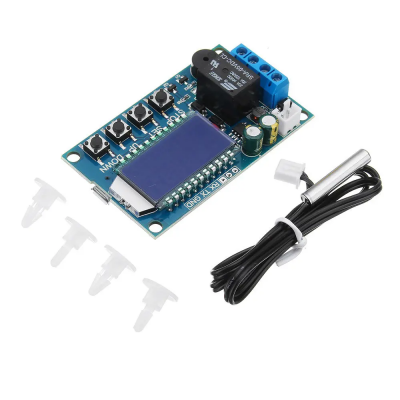

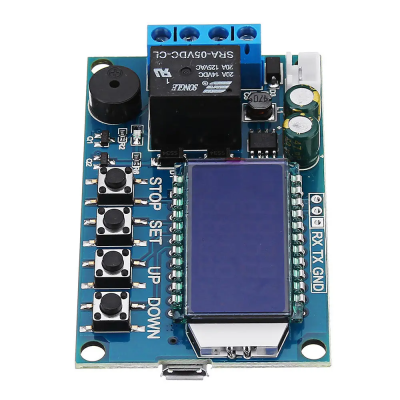

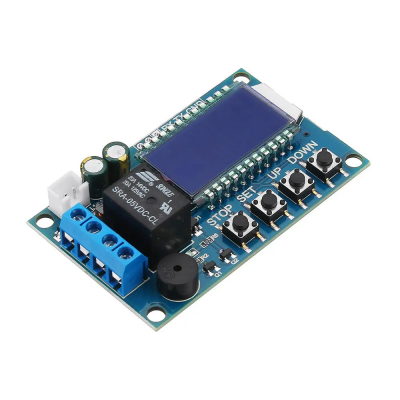

XY-T01 Digital Thermostat Temperature Control Switch Temperature Controller Module

Dissipation Power:1.9 Inches & Under
Supply Voltage:5V
Model Number: XY-T01
Operating Temperature: -40-+85

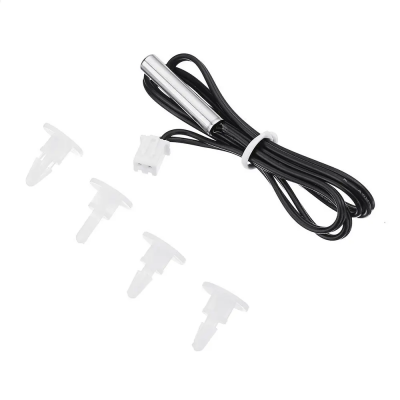

NTC10K sensor

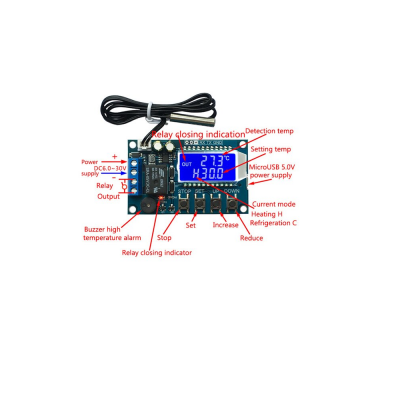

Product Function:

Set Temperature ---- SetT;
Backlash Temperature-----BackT;
1.  Heating Mode 'H':
When Temperature ≤ SetT - BackT ;Relay conduction, heating equipment begin to work;
When Temperature ≥ SetT, Relay disconnect, heating equipment stop work;
2. Refrigeration mode 'C':
When Temperature ≥ SetT + BackT; Relay conduction, refrigeration equipment begins to work;
When Temperature ≤ SetT; Relay conduction, refrigeration equipment stop work;
3. High Temperature Alarm 'ALA':
When Temperature ≥ Alarm Temperature, the system opens the sound and light alarm, and disconnects the relay, any key stops the sound light;
4. Delay Start ‘OPH':
When a normal heating or refrigeration work is done, the system starts to time T, and only after the T≥OPH, the system can carry out the next round of heating or refrigeration work;
5. Temperature Correction Function OFE (-10.0 ~ 10.0°):
The system will work for a long time and may have deviations that can be corrected by this function, Temperature = Measured + Calibration;
6. Parameter Remote Read/Set:
The parameters such as setting temperature, backlash temperature and temperature correction can be set through UART.
7. Real-time Temperature Report:
 If the temperature reporting function is turned on, the product is transmitted to the terminal by the UART at 1s intervals, which facilitates data collection;
8. Relay enable (default enable):
If the relay is disable, the relay remains disconnected;
9. Restore factory Settings:
At the same time press the STOP, set key more than 3S, restore factory settings;
