- Stock: In Stock
- Brand: xcluma
- Model: BE-000390
- Weight: 120.00g
- MPN: BE-000390
DESCRIPTION:
Freezer Temperature Controller Fast Using
1.1 Please check the wiring according to the user manual, caution don’t over voltage or over load.
1.2 Setting mode:press “SET” key for 5sec, the meter will display P0, then press “SET” key again to select “H” heating mode or “C” cooling mode.
1.3 Setting temperature: press “SET” key and the screen is flickering, then you can set the required temperature by the arrow key.
1.4 “Rst" is enter key, you can keep pressing this key to switch on or shut down.

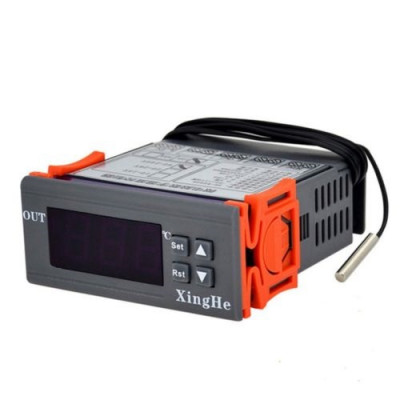

Freezer Temperature Controller Panel Description:
|
Temperature Range: |
-50~110℃ |
|
Temperature Resolution: |
0.1℃(-9.9~99.9) the other section is 1℃ |
|
Control Precision: |
0.2%FS |
|
Refreshing Frequency: |
0.5s |
|
Power Supply: |
DC 12V |
|
Input Signal: |
NTC(B3950=10K 0.5%) 1m waterproof sensor |
|
Output Type: |
Output directly, the maximum capacity 10A |
|
Environment Temperature: |
-30~60℃ |
|
Environment Humidity: |
20%~85%RH |
|
Dimensions(mm): |
77*35*88(mm) |
|
Opening Size: |
70.5*29(mm) |
Freezer Temperature Controller Function Parameters Description:
|
Code |
Code Description |
Setting Range |
Factory Default |
|
P0 |
cooling mode/heating mode |
C/H |
C |
|
P1 |
return difference setting |
0.1~30 |
2 |
|
P2 |
upper limit value of control range |
120 |
120 |
|
P3 |
lower limit value of control range |
-55 |
-55 |
|
P4 |
Temperature Correction |
-10.0~+10.0℃ |
0 |
|
P5 |
Time delay after start |
0-10minutes |
0 |
|
P6 |
High temperature alarm |
-50~110 |
OFF |
|
P7 |
Data lock |
ON/OFF |
OFF |
|
P8 |
Reset |
ON/OFF |
OFF |
