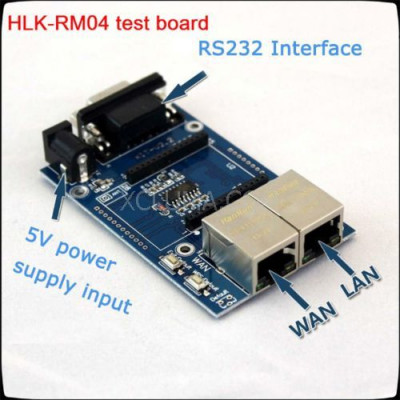

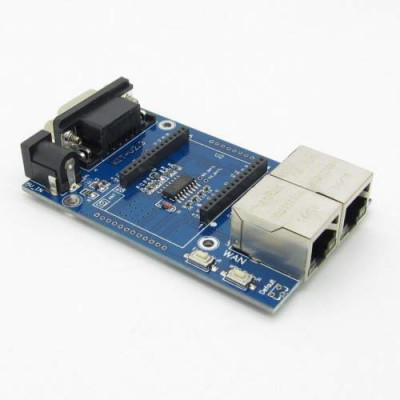

Hlk-Rm04 Uart To Wifi Serial Port To Wifi Module Test Base Board
- Stock: In Stock
- Brand: xcluma
- Model: BE-000041
- Weight: 38.00g
- MPN: BE-000041
Rs565.00
(GST +18%Extra)
Product description:
- UART to WIFI Wireless Module，UART to Ethernet Module，Ethernet to WIFI Module，UART server module，Make your Serial Device connected to the Internet easily. Double Data Rate All transparently. Guarantee the highest limit of Usability and Compatibility.
- The module integrated 10/100 m adaptive Ethernet interface.The highest baud rate up to 230.4 Kbps of the serial communication.and the highest rate of TTL serial port is 500KBPS.
- Each module in strict test and power correction,Ensure consistency of product.
- The free conversion of double serial ports、double Ethernet ports and WIFI .Catering toyour extensive demands. 802.11 b/g/n WIFI support.
- Size:40*29
- Operating Temperature: Industry: -25~75°C
- Built-in 360MB MIPS CPU , 16M RAM ,4M FLASH ,Wireless baseband,RFFE,and a variety of peripheral bus.
- Support the IEEE 802.11 b/g/n.Support transparent protocol data transmission mode.
- Support General encryption methods and algorithms of WIFI ,WEP/WAP-PSK/WAP2-PSK/WAPI,Encryption type:WEP64/WEP128/TKIP/AES.
- Provide the AT + instruction set configuration,Provide friendly Web configuration page,configured via Web.
- HLK - EM04 module optional built-in onboard or external antenna.
- Support WIFI work in AP model and node mode,The real hardware AP,Supports iphone and all android phones connected WIFI. Supports AP and station simultaneous online.
- Optional TCP Server/TCP Client/UDP mode,Support network protocols:TCP/UDP/ARP/ICMP/HTTP/DNS/DHCP.
- Support DHCP to automatically obtain IP,Support when work in AP mode assigned IP from the device.
- The rate of serial port is adjustable,1200-230400.
- Note: It is Based Board for Hlk-Rm04 ; Need to plug Hlk-Rm04 before using it.
