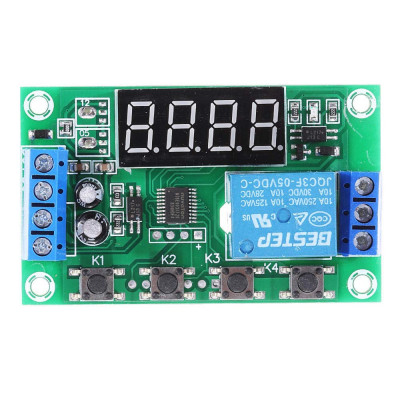

YYC-2S Multifunctional 4-Digit LED Display 0-999 Minute relay timer 24 MODE

New

Thanks for Your Trust and Support!!!

YYC-2S Multifunctional 4-Digit LED Display 0-999 Minute relay timer 24 MODE

Stock: In Stock
Brand: xcluma
Model: BE-002123
Weight: 28.00g
SKU: BE-002123
MPN: BE-002123

0 reviews - Write a review

Rs526.00

(GST +18%Extra)

Qty

Add to Cart

Direct Checkout Ask Question

Add to Wish List Compare this Product

free shipping Order Above 499--**

Dispatch within 24 Hours*

7 Days Replacement Only

Description
Reviews

YYC-2S Multifunctional 4-Digit LED Display 0-999 Minute relay timer 24 MODE

1: Product model: YYC-2S 24 common functions, to meet more application needs; can control solenoid valves, pumps, motors, lights, etc.

2: Input voltage: DC 5/12/24V optional

3: Output power: can control DC or AC load within 10A

4: Time range: 0.01 seconds to 999 minutes adjustable at any time

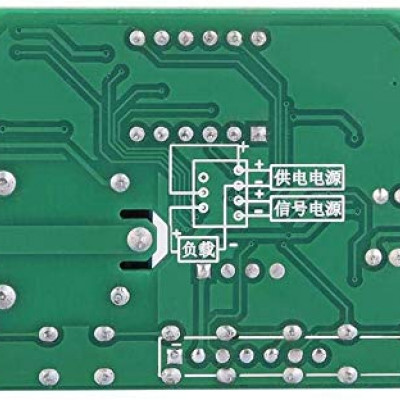

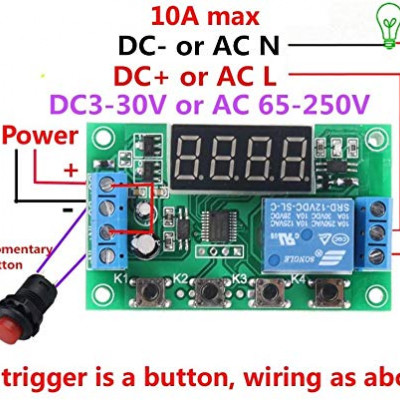

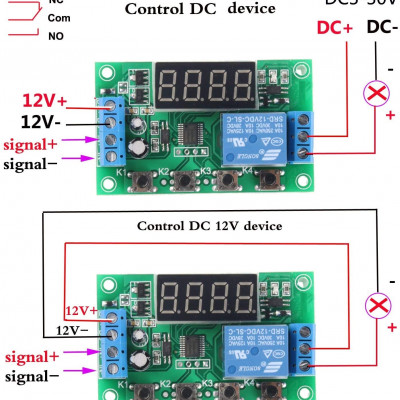

5: Description of the wiring port:

1, DC+: input DC power supply positive

2, DC-: input DC power supply negative

3. IN+: positive input terminal

4, IN-: signal input terminal

5, NO: relay normally open interface, the relay is suspended before the suction, after the suction and short circuit with COM

6, COM: relay common interface

7. NC: The relay normally closes the interface, and the relay is shorted to COM before the suction is closed.

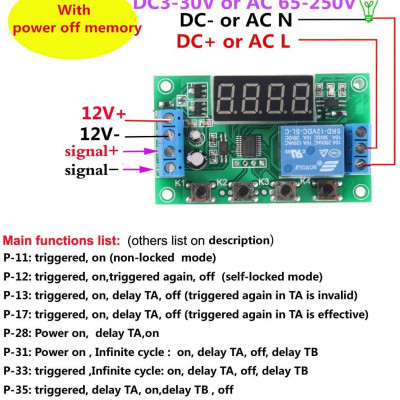

1.Function list:

P-11: Jog P-12: Self-locking P-13: Give signal, the relay will stop automatically for A seconds; the trigger will be invalid during the delay.

P-14: Give signal, relay will stop automatically for A seconds; trigger re-time during delay

P-15: Give signal, relay is automatically stopped for A seconds; trigger timing is triggered during delay

P-16: Give signal, relay will stop automatically for A seconds; trigger reset during delay

P-17: Give signal, relay is closed, input signal is disconnected, output is off after A seconds

P-18: After power-on, the relay will immediately pull in, after a delay of A seconds, the power will be turned off;

P-21: Disconnect the signal relay, after a delay of A seconds, the relay pulls in

P-22: Give signal, after more than A seconds, the relay pulls in, the signal disappears, the relay stops.

P-23: After the signal disappears for more than A seconds, the relay is closed, there is a signal, and the relay stops.

P-24: There is a signal. After more than A seconds, the relay is closed. When the signal disappears for more than A seconds, the relay stops.

P-25: There is a signal after more than A seconds, the relay is closed, and after a signal exceeds A seconds, the relay stops.

P-26: There is a signal. The relay stops after A seconds of suction, and the signal disappears. The relay stops again after A seconds.

P-27: The pulse signal is detected and the relay is closed; if there is no pulse signal, the relay delays for A seconds;

P-28: After power-on, after a delay of A seconds, the relay pulls in until the power is turned off.

P-31: After power-on, the relay pulls in for A seconds, disconnects B seconds, infinite loop; power-off stops P-32: signal, start P-31

P-33: Give a signal, start P-31 infinite loop; give another signal to terminate the loop

P-34: After power-on, after a delay of A seconds, the relay pulls in and closes after B seconds.

P-35: There is a signal. After a delay of A seconds, the relay pulls in and closes after B seconds.

P-36: There is a signal. After more than A seconds, the relay pulls in and closes after B seconds.

P-37: There is a signal, the relay will stop automatically for A seconds, and then stop for 24 seconds. The signal trigger is invalid during A+B time.

P-38: There is a signal, the relay will stop automatically for A seconds, stop and re-time for B seconds, and then automatically close for A seconds.

P-41: There is no signal; the signal disappears; the relay works after the delay of A time.

P-42: The signal disappears, after a delay of A time, the relay works; the end of work B time

P-43: The signal disappears. After the A time, the relay works; the working B time ends.

P-44: After power-on, the relay works for A time, and stops B time; the cycle stops automatically for C times.

P-45: The power is not activated, after the signal is given; the relay works for A time, the B time is stopped; the cycle C stops automatically; the signal is given again, once again

P-46: After the signal is sent for more than A times, the relay is closed; the suction is kept; the power is stopped.

P-47: After the signal is sent for more than A times, the relay is closed for B seconds.

P-48: In C seconds, after the signal is continuously sent for more than A times, the relay is closed for B seconds.

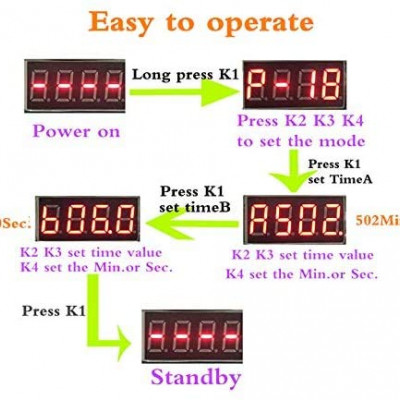

2.Button setting instructions:

The power-on display “————” means to enter the standby state;

Press K1 for the first time (more than 1 second is required to prevent false triggering)

Screen display: P -11: K2 adjusts the main mode, K3 and K4 adjustment functions

Press the second time K1, the screen displays: A001: K2 and K3 adjust the first time A, K4 adjust the decimal point (time unit)

Pressing the third K1, the screen displays: B001: K2 and K3 adjust the second time B, K4 adjusts the decimal point (time unit)

Pressing the fourth K1, “————” means entering the standby state;

Press K4 in standby mode to permanently turn off/on the display and switch the low power mode.

X.XX decimal point in hundred, timing range: 0.01 seconds to 9.99 seconds

XX.X decimal point in ten, timing range: 0.1 seconds to 99.9 seconds

XXX has no decimal point, timing range: 1 second ~ 999 seconds

XXX. The decimal point is in one place, the time range is from 1 minute to 999 minutes.

Package Included :1 x DC 5V/ 12V /24V 10A LED Digital Delay Relay
