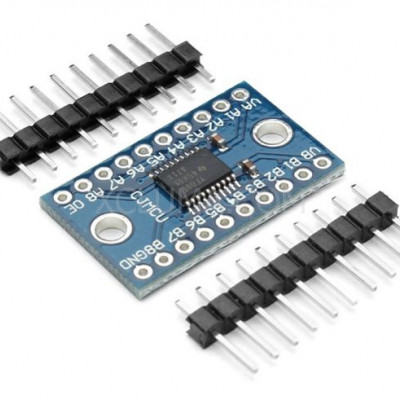

CJMCU TXS0108E High Speed Full Duplex 8 Way Level Conversion Module

DESCRIPTION:

8 channels bidirectional voltage translation between different logic level. translate between Ax and Bx automatically
VCCA Voltage level: 1.2V-3.6V
VCCB Voltage level: 1.65v-5.5v
Dimension Approx: 21mm x 15mm

How to Use:
In the case of translating between 3.3V and 5V system:
VCCA connects to 3.3V power supply
VCCB connects to 5V power supply
GND connects to power negative pole respectively. the two power supply should be common-grounded with each other
When Ax has TTL 3.3V input. Bx will get TTL 5V output
When Bx has TTL 5V input. Ax will get TTL 3.3V output
NO direction control required
