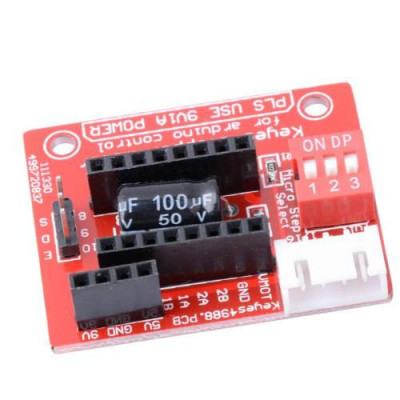

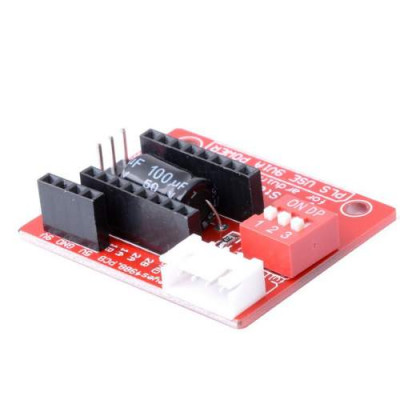

A4988 Drv8825 3D Printer Stepper Motor Driver Control Extension Shield

A4988 Drv8825 3D Printer Stepper Motor Driver Control Extension Shield
  • Stock: In Stock
  • Brand: xcluma
  • Model: BE-000085
  • Weight: 11.00g
  • MPN: BE-000085
Rs78.00
(GST +18%Extra)
Product description:

1.If jumper is hit the position of ON DP, that means 16 segment (4988) or 32 segment (8825)Jm connected motor

2. connect 5v and 9v  power supply

3.E, S, D, G, respectively corresponding to the connection of the Enable/Step/Dir/Gnd drive signal output


Notice:

Pay attention to when installation direction, otherwise it may burn drive even the mainboard

Package Include: 1 x A4988 DRV8825 3D PRINTER STEPPER MOTOR DRIVER CONTROL EXTENSION SHIELD
