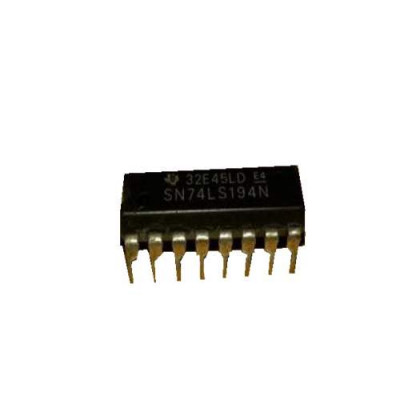

74LS194 SN74LS194N 4bit Bi directional Shift Register

74LS194 SN74LS194N 4bit Bi directional Shift Register
Thanks for Your Trust and Support!!!
Thanks for Your Trust and Support!!!
74LS194 SN74LS194N 4bit Bi directional Shift Register
  • Stock: In Stock
  • Brand: xcluma
  • Model: BE-000617
  • Weight: 10.00g
  • MPN: BE-000617
0 reviews - Write a review
Rs21.00
(GST +18%Extra)
Add to Cart
Direct Checkout Ask Question
Add to Wish List Compare this Product
free shipping Order Above 499--**
Dispatch within 24 Hours*
7 Days Replacement Only
Features:
  • Parallel Inputs and Outputs
  • Four Operating Modes, Synchronous, Right Shift, Left Shift and Pause
  • High Speed up to 25MHz
  • Positive Edge Triggered Clocking
  • Standard TTL Switching Voltages
General Description:
This bidirectional shift register is designed to incorporate virtually all of the features a system designer may want in a shift register; they feature parallel inputs, parallel outputs, right-shift and left-shift serial inputs, operating-mode-control inputs, and a direct overriding clear line. The register has four distinct modes of operation, namely:
Parallel (broadside) load
Shift right (in the direction QA toward QD)
Shift left (in the direction QD toward QA)
Inhibit clock (do nothing)
Synchronous parallel loading is accomplished by applying the four bits of data and taking both mode control inputs, S0 and S1, HIGH. The data is loaded into the associated flip-flops and appear at the outputs after the positive transition of the clock input. During loading, serial data flow is inhibited.

Shift right is accomplished synchronously with the rising edge of the clock pulse when S0 is HIGH and S1 is LOW. Serial data for this mode is entered at the shift-right data input. When S0 is LOW and S1 is HIGH, data shifts left synchronously and new data is entered at the shift-left serial input.
Clocking of the flip-flop is inhibited when both mode control inputs are LOW.

Write a review

Please login or register to review
Tags: integrated circuit, 74ls194, 7494,
