5V To 3.3v 9V 12V 24V Desktop Power Module Battery Capacity Tester

5V To 3.3v 9V 12V 24V Desktop Power Module Battery Capacity Tester

This product built-in 2 systems, PER system and VAH system, under the PER system you can output adjustable voltage from 1.2V to 24V(2-3W power), under the VAH system, you can use it as multimeter to mearsure voltage and current, also can use to test power, capacity and time. Ideal for technical engineer to research, development and test instruments, also suitable for maintain and fix.

Features:
Overpower protection, it will automatic shut off if it is overpower, LCD screen will flash display "OPP".

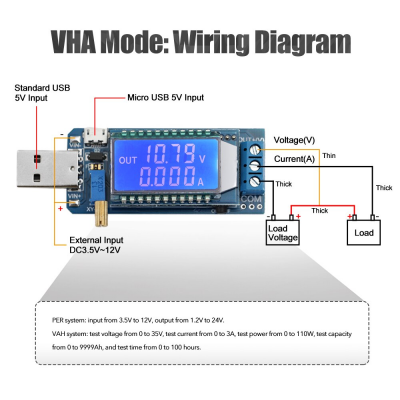

PER system: input from 3.5V to 12V, output from 1.2V to 24V.
VAH system: test voltage from 0 to 35V, test current from 0 to 3A, test power from 0 to 110W, test capacity from 0 to 9999Ah, and test time from 0 to 100 hours.
Can be used to test voltage and current, also can use to test power, capacity and time.
Also can be used to test cell charge and discharge.

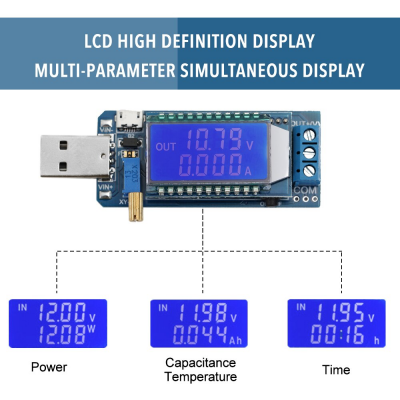

LCD high definition display, multi-parameter simultaneous display.
Note: This product only can be used to test forward voltage and forward current, please distinguish live wire and null wire carefully, wrong connect may lead to cause machine damage.

Specifications:
Name: Module

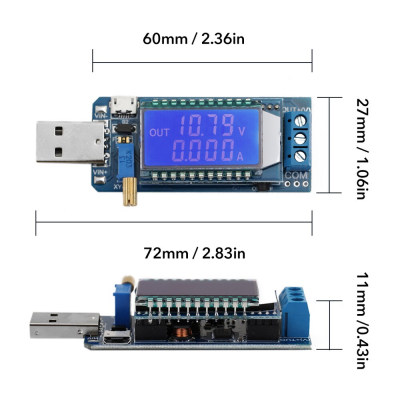

Item size: 77 * 33 * 9mm / 3.03 * 1.30 * 0.35in
Item weight: 23g / 0.81ounce
Package size: 110 * 50 * 15mm / 4.33 * 1.97 * 0.59in
Package weight: 25g / 0.88ounce

Package list:
1 * Module
