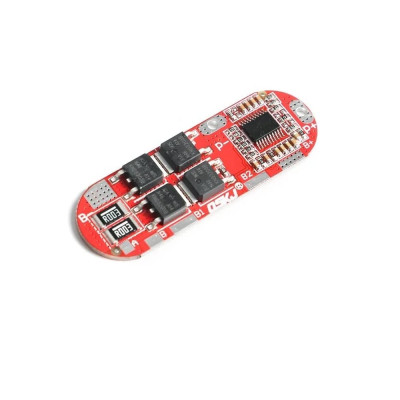

3S/4S/5S High Current Ternary Polymer Lithium Battery Protection Board 20A - 3 strings
- Stock: In Stock
- Brand: xcluma
- Model: BE-002590
- Weight: 7.00g
- SKU: BE-002590
- MPN: BE-002590
Rs178.00
(GST +18%Extra)
- Charging current: 25A
- Discharging current: 25A
- FOR Li-POLYMER Limnos Protect Parameter (3.6V / 3.7V)
- Single Cell overcharge protect voltage: 4.23-4.28V
- Single Cell overcharge protect recover voltage: 4.08-4.18
- Overcharge protect delay: 0.5-1.5S
- Single Cell over-discharge protect voltage: 2.72-2.88V
- Single Cell over-discharge protect recover voltage: 2.9-3.1V
- Overcharge protect current: 60A
- Over-discharge protect current: 60A
- Over-discharge protect delay: 0.5-1.5S
- Temperature protect: YES
- Disconnect protect: YES
- Shortage protect: YES
- Shortage delay: 100-600mS
- Shortage protect recover: YES
- Charging voltage: 12.6V for 3S, 16.8V for 4S, 21V for 5S BMS board
