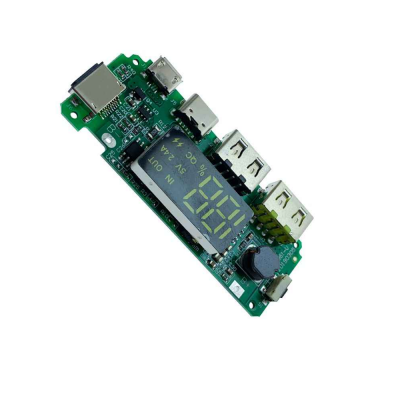

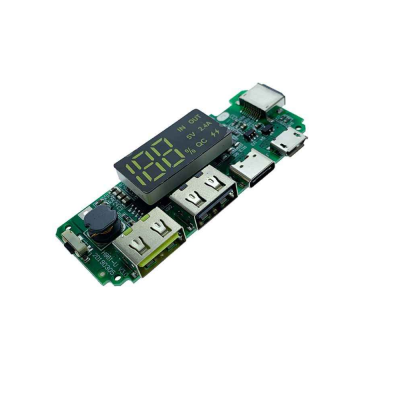

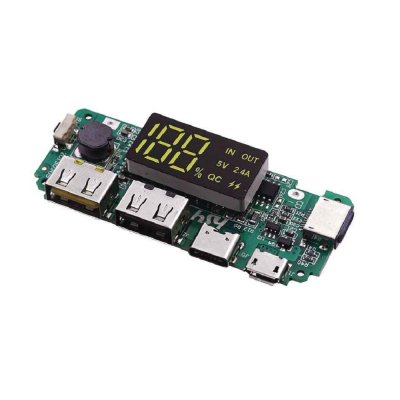

18650 lithium battery digital display charging module 5V2.4A 2A 1A dual USB output Boost

Description

·        Made of high-quality material, durable, firm and stable to use.

·        Designed with the display screen, you can know the charging power in real time.

·        The system will provide an accurate battery indication after a complete charge and discharge.

·        Support single/three type of charging ports input for iPhone for An-droid Type-C Micro USB.

·        Provide overcharge, over discharge, short circuit, and other protection.

Features

·        Input Voltage B+ to B-: 3.0-4.2V

·        Output constant current: 2A

·        Prevent Overcharge Protection

·        Detection voltage: 4.20±0.05V

·        Release voltage: 4.100±0.05V

·        Detection delay time: less than 200 ms

·        Prevent Over discharge Protection

·        Detection voltage: 3.0±0.10V

·        Release voltage: 3.10±0.10V

·        Detection delay time: less than 100 ms

·        Short Circuit Protection:

·        Short detection delay time: less than 50μS

·        Release Conditions: Cut off load

·        Normal Current Consumption:

·        Normal current consumption of PCM: Max 60μA

·        Standby current consumption: Max 50μA

·        Suggest Working Conditions:

·        Max continuous charge/discharge current: 1.5/2.4A

·        Suggest working temperature: -5-45℃

·        IR resistance: less than and equal to 65mΩ
